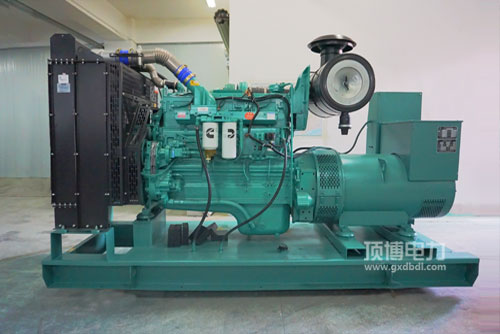

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯带发电用启动因柴油经济发展性好: 专业的柴油把控好软件，代表性的STC、ESTC 分级制度把控好软件，特别的装修设计的连杆顶上燃烧物物室，高压低压输送柴油，做好做雾化，燃烧物物做好。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯带发电用发起机瞬态机械性能市场大的: 美好的发起机整体性设定，能默契配合康明斯的难忘的EFC设备，掌握精准性强，加载准确时间快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯并网发电用热车机升工作功率高: 布局设计方案紧凑型轿车.外表布置设计合情合理，程序运行稳步。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷cpu型号 QSNT. QSK19. QSK38. QSK50提供国内非路第二阶段中及美洲Tier2. Tier 3排卸相关法律法规追求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零配件可求性好， 打着机开机运行及定期检查定期维护便利性，成本投入低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

输出超范围 Power Range   224-310KW结构类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L形态尺寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净高质量 Dry Weight   940kg

224-310KW康明斯发电厂用起主观因素的亮点：体型小， 缩减比低， 网格板气流进行加热，不易起动，转移车载多媒体电源适配器的常选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

热车机规格型号	所用工作电压(kW)Prime Power	应急公率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
